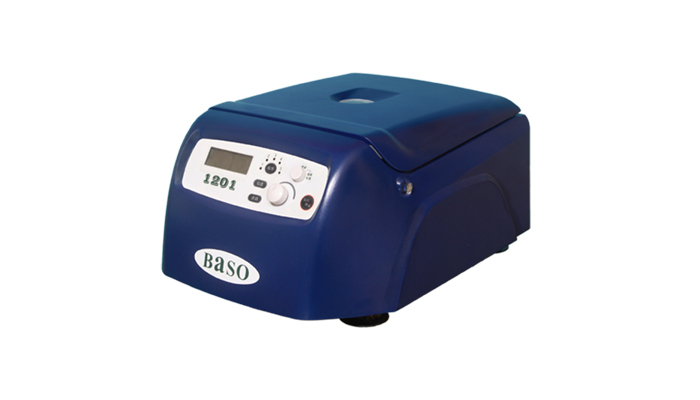

Baso Standardized Centrifuge for Vehicle
Features:
1. Micoprocessor control; set default the permanent centrifugal program button for blood grouping; cross
matching, antibody screening and cell separation; more program button reserved for user setting;
2. Display and setting function for the special rotational speed and RCF which can be set directly;
3. Adopt countdown for the effective centrifugal time;
4. Built-in special gradienter, four support points has the self-leveling adjustment function to keep it place in
horizon;
5. Special sucker has strong adsorbability in the working table of blood collecting vehicle;
6. Plastic casing with pad to meet the requirment of nucleic acid detection casing.
Technical Parameters:
| Model No. |
BaSO 1201 |
|
Max. RCF |
1900g&4000rpm |
|
Specical Vehicular Device |
Built-in special gradienter, four support points has the self-leveling adjustment function to keep it place in horizon; |
|
Sepecial sucker has strong adsorbability in the working table of blood collecting vehicle; |
|
|
Vehicular power supply |
|
| Motor Type |
Non-carbonate direct current motor, no pollution, free to maintenance; |
| Electric Control Unit |
Microprocessor control system; |
|
Dynamic display the RCF and rotational speed, convvertilbe sbsolute centrifugal force and relative centrifugal force; |
|
|
Memory unit; specially set 2-group of permanent centrifugal program button (cell separation and special for blood bank), and then provide 5-group one for user setting; |
|
|
Instant centrifugal function; |
|
| Safe Device |
Compensation device (about 10g) and auto-power-off device under the unbalance centrifugal; |
|
Over-heating protection unit for motor; |
|
|
Three-point suspension balance system; |
|
|
Double-lock; electric and mechanic combination lock, more save for the users; |
|
| Timer |
1s-99min; 59s digit time unit; |
|
Adopt countdown for the effective centrifugal time, it is under precise control; |
|
|
Rotor Type |
Fixed angle rotor (closed), lower noise; |
|
Braking System |
Auto-break system, 2-7s stop without downtime; |
|
Power Supply |
AC 110/240V 50/60Hz (Vehicular available); |
|
Casing Volume |
3ml/5ml/10ml/15ml x 12pcs (Plastic casing with pad to meet the requirement of nucleic acid detection casing); |
|
Weight |
6 KGS |
|
Dimensions |
255 x 245 x 140 mm |
