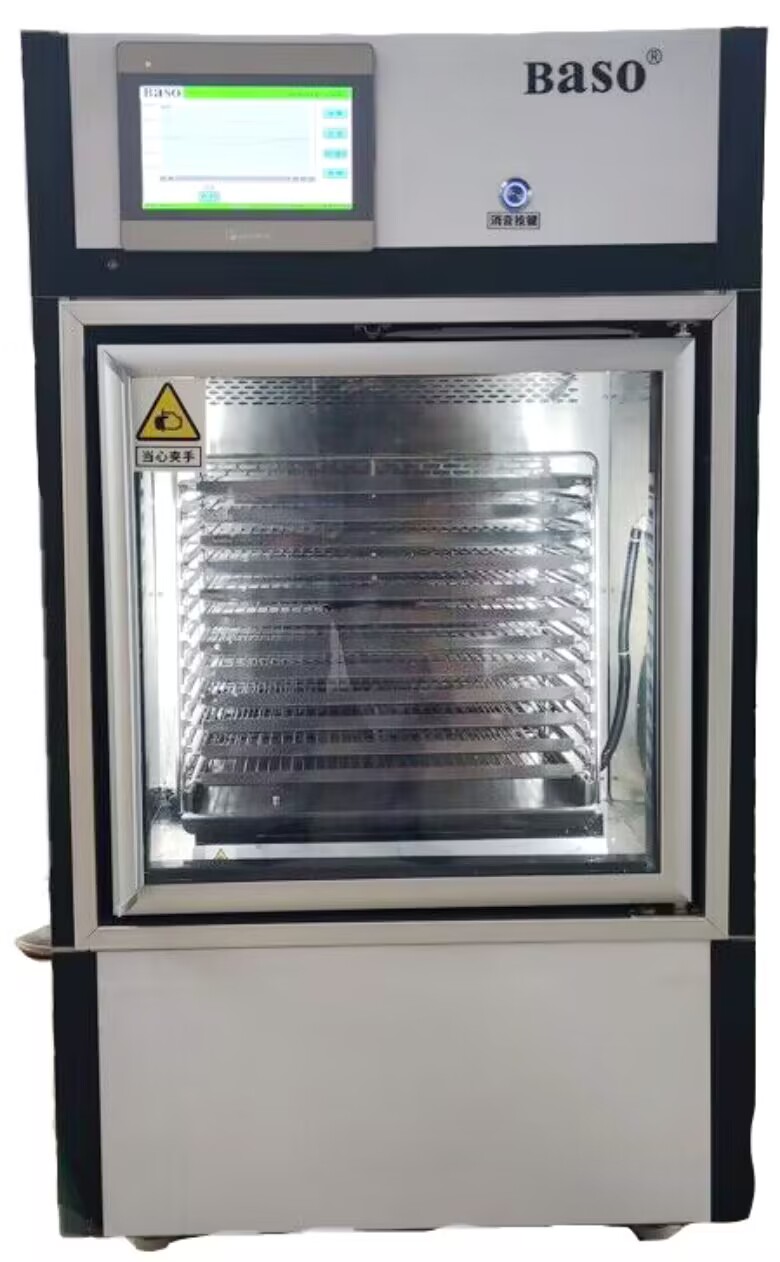

Platelet Thermostatic Oscillation Storage Box Model:BSHZ - I12
Technical Features
Temperature Recording Function
◆ Real-time display of temperature/time curve on the touch screen. Automatically save temperature data for facilitate data traceability and quality management.
Data Processing
◆ Equipped with wireless module. Operation data and barcode information can be sent to the PC in real time, automatically generate data on the storage time of each bag of platelets.
◆ Quality management system. Operator, temperature, bar code, equipment status and other data can be collected , analyzed, generate quality management charts, and printed.
Structural Characteristics
◆ Double hollow thermal reflection coating tempered glass door, bright, heat preservation, easy observation.
◆ Inner liner, oscillator and box are made of bacteria-resistant stainless steel. Anti-corrosion.
◆ The oscillator adopts drawer shelf design to prevent platelets slipping effectively. Easy access and clean up.
Quality control function
◆ Quality control function. Ensure the safety and effectiveness of the equipment temperature control system.
Scanning function
◆ Optional scanner. Automatically record the barcode for quality management of each bag of platelets.
Disinfection function
◆ Ultraviolet disinfection function. An appointment for start and stop disinfection function automatically.
◆ Disinfection function requires a password confirmation to effectively prevent misoperation.
Silencing key
◆ A muffler button. Stop the sound prompt and keep the text prompt. Effectively reduce noise pollution.
Performance Summaries
|
Total Number |
12 layers |
Working Mode |
Continuous left and right and horizontal oscillation |
|
Standard Capacity |
36 bags (machine bag) 48 bags (hand bag) |
Oscillation Frequency |
60 times ±5 times/min |
|
Single-layer Area |
1650cm2±10% |
Power Supply/Power |
220V 50Hz/ 750VA |
|
Temperature Range |
20℃~24℃ |
Noise Value |
≤65dB (A) |
|
Dimensions |
800×750×1400(mm) |
Weight |
160Kg |
